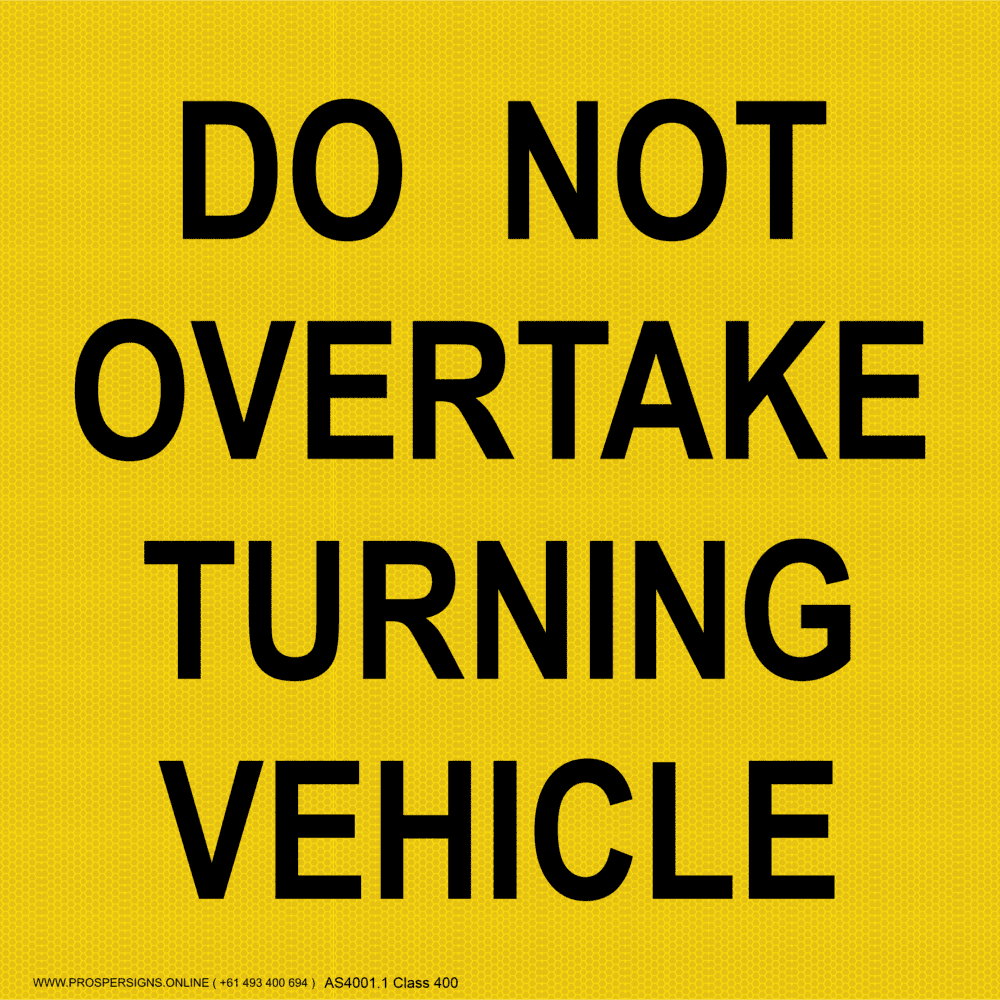

Vehicle Sign – Do Not Overtake Turning Vehicle Category 33L Rear Marking Plate

Category 33L Rear Marking Plate Do Not Overtake Turning Vehicle.

If Category 33 plates are selected

• Use them in correct configuration with either 31L or 33L plates.
• Use additional strip plates if possible for added vehicle visibility.

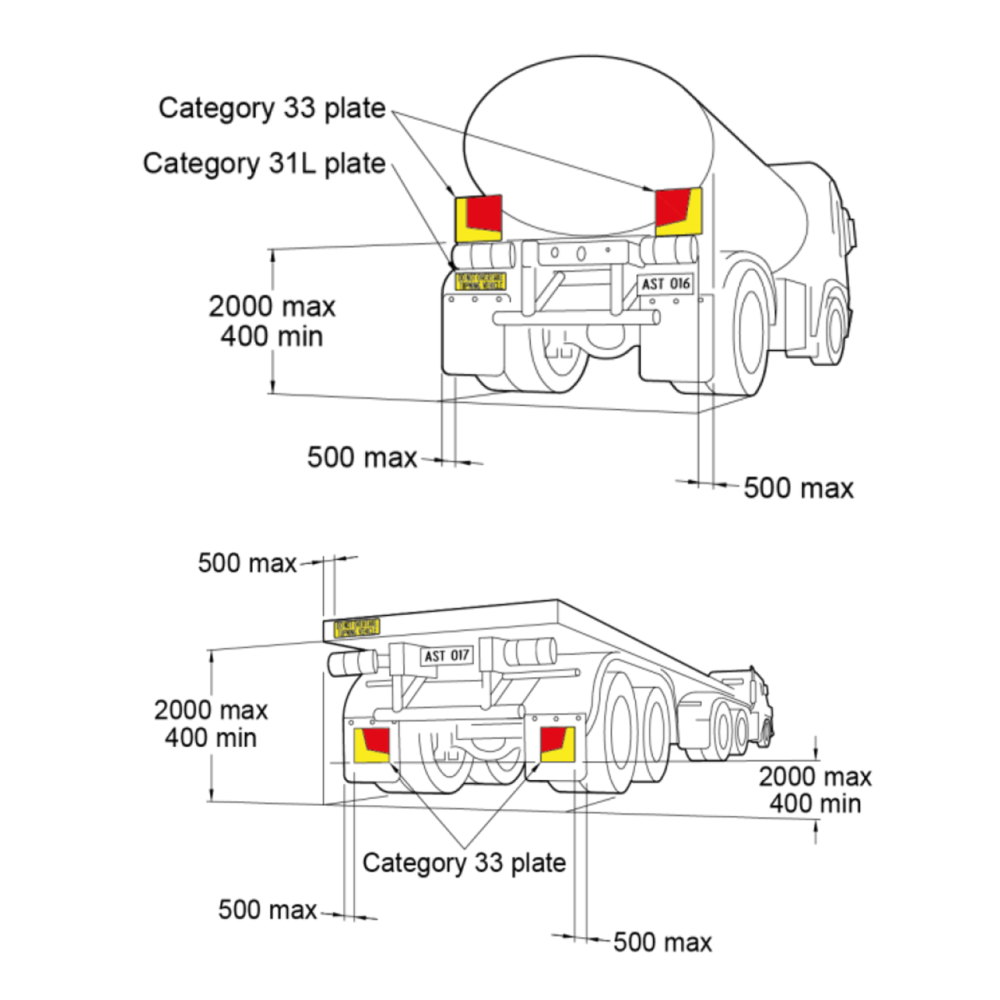

Location – Height/Distance (mm)

Outer edge max 500mm
Height Prefer 400-1500mm with Max 2000mm.

Function

Indicate left and right extremities of vehicle. There is only one Category 33 sign but it can be used on the left or right of the rear of the vehicle by orienting it as required.

Description

Red symbol on yellow retroreflective background. Directions (LH TOP and RH TOP) provided on corners of plate to indicate correct angle of orientation.

Configuration

• Position pair of Category 33 plates on the rear surface of vehicle at the same height, symmetrically about the longitudinal centre-line of the vehicle
• For applicable vehicles locate a Category 31L or 33L plate on this surface at the left-hand side of the rear of the vehicle above the Category 33 plate OR use a Category 34 plate instead of the left oriented Category 33 plate.

Complies

Australian Standards (AS4001.1) and the latest National Code of Practice for Rear Marking Plates (VSB12).

Available on Aluminium Composite Material (ACM) or Sticker only.

Size 300mm (W) x 300mm (H).

Print on reflective material Class 400.

Rounded corner.
